Technical datasheet
GN 970Installation brackets

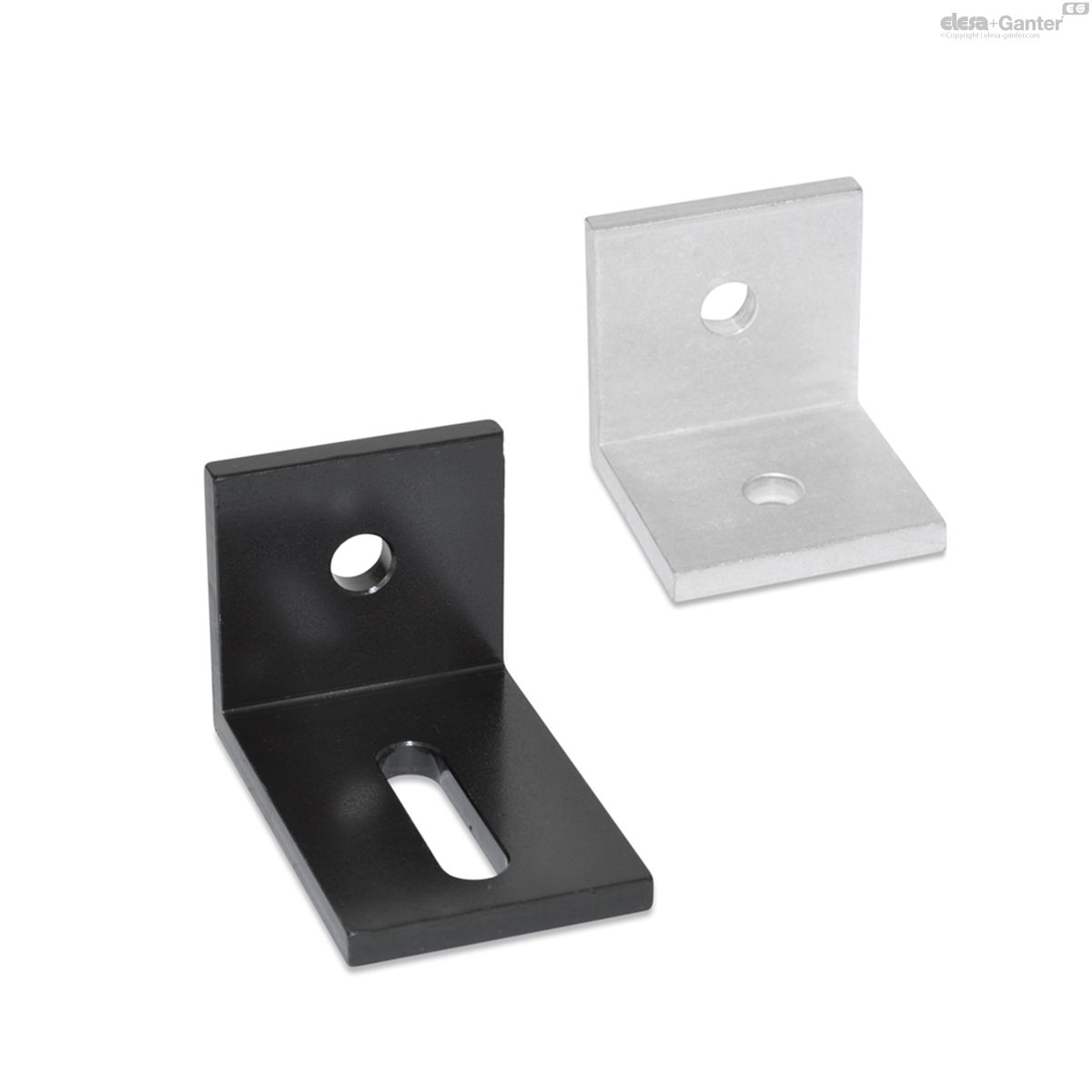

equal sides
equal / unequal sides
GN 970
|
Catalogue
|
h1
|
b1
|
l1
|
b2
|
d
|
h2
|
l2
|
m
|
s
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
GN 970-STB-30-30-30-A
|
30
|
30
|
30
|
18
|
6.2
|
18
|
15
|
-
|
4
|
54
|
|
GN 970-ALM-30-30-30-A
|
30
|
30
|
30
|
18
|
6.2
|
18
|
15
|
-
|
4
|
18
|
|
GN 970-STB-30-30-60-A
|
30
|
30
|
60
|
18
|
6.2
|
18
|
15
|
30
|
4
|
108
|
|
GN 970-ALM-30-30-60-A
|
30
|
30
|
60
|
18
|
6.2
|
18
|
15
|
30
|
4
|
36
|
|
GN 970-STB-40-40-40-A
|
40
|
40
|
40
|
24
|
8.2
|
24
|
20
|
-
|
5
|
120
|
|
GN 970-ALM-40-40-40-A
|
40
|
40
|
40
|
24
|
8.2
|
24
|
20
|
-
|
5
|
40
|
|
GN 970-STB-40-40-80-A
|
40
|
40
|
80
|
24
|
8.2
|
24
|
20
|
40
|
5
|
233
|
|
GN 970-ALM-40-40-80-A
|
40
|
40
|
80
|
24
|
8.2
|
24
|
20
|
40
|
5
|
80
|
|
GN 970-ALM-50-50-50-A
|
50
|
50
|
50
|
30
|
10.2
|
30
|
25
|
-
|
6
|
75
|
|
GN 970-ALM-50-50-100-A
|
50
|
50
|
100
|
30
|
10.2
|
30
|
25
|
50
|
6
|
150
|
|
GN 970-STB-30-30-30-B
|
30
|
30
|
30
|
18
|
6.2
|
18
|
15
|
-
|
4
|
51
|
|
GN 970-ALM-30-30-30-B
|
30
|
30
|
30
|
18
|
6.2
|
18
|
15
|
-
|
4
|
17
|
|
GN 970-STB-30-30-60-B
|
30
|
30
|
60
|
18
|
6.2
|
18
|
15
|
30
|
4
|
103
|
|
GN 970-ALM-30-30-60-B
|
30
|
30
|
60
|
18
|
6.2
|
18
|
15
|
30
|
4
|
34
|
|
GN 970-STB-40-40-40-B
|
40
|
40
|
40
|
24
|
8.2
|
24
|
20
|
-
|
5
|
81
|
|
GN 970-ALM-40-40-40-B
|
40
|
40
|
40
|
24
|
8.2
|
24
|
20
|
-
|
5
|
39
|
|
GN 970-STB-40-40-80-B
|
40
|
40
|
80
|
24
|
8.2
|
24
|
20
|
40
|
5
|
228
|
|
GN 970-ALM-40-40-80-B
|
40
|
40
|
80
|
24
|
8.2
|
24
|
20
|
40
|
5
|
77
|
|
GN 970-ALM-50-50-50-B
|
50
|
50
|
50
|
30
|
10.2
|
30
|
25
|
-
|
6
|
72
|
|
GN 970-ALM-50-50-100-B
|
50
|
50
|
100
|
30
|
10.2
|
30
|
25
|
50
|
6
|
144
|

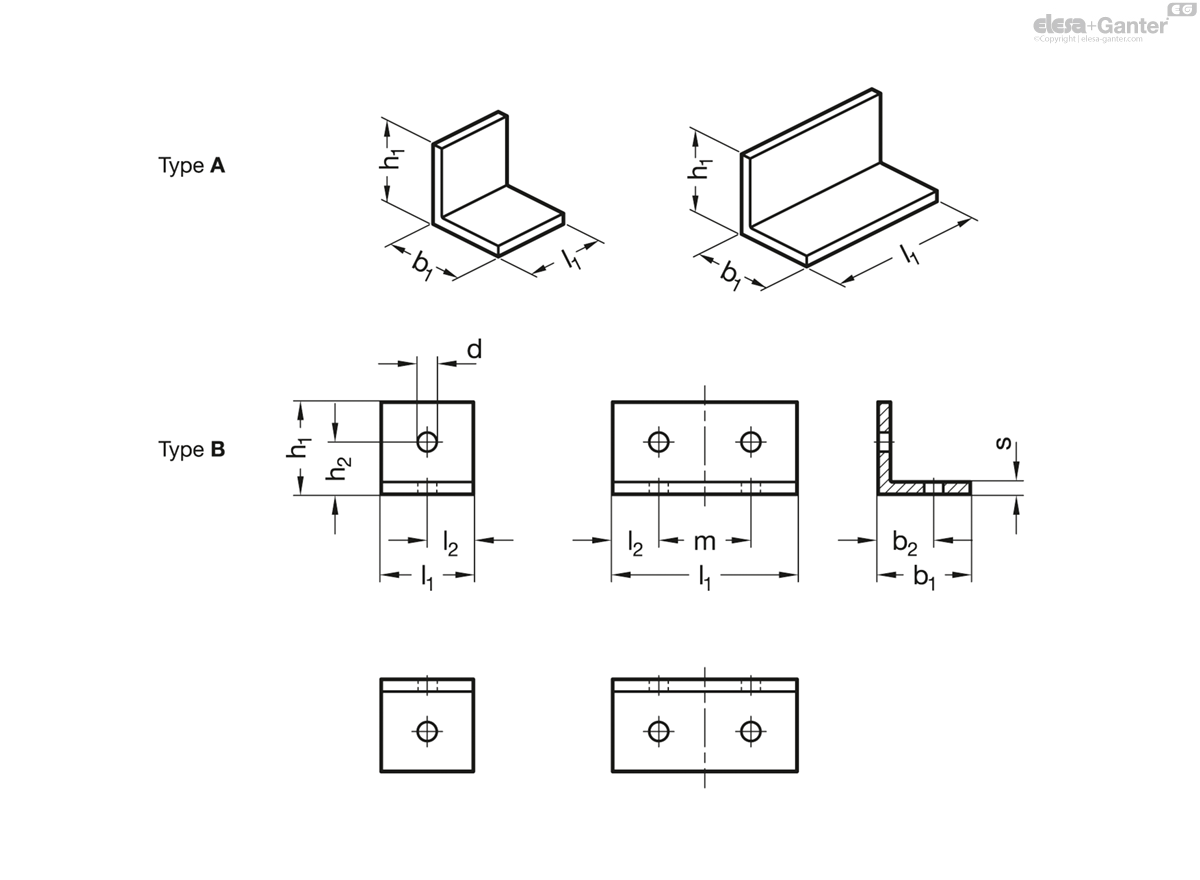

Version with equal sides
Types
- Type A: without bores
- Type B: with bores

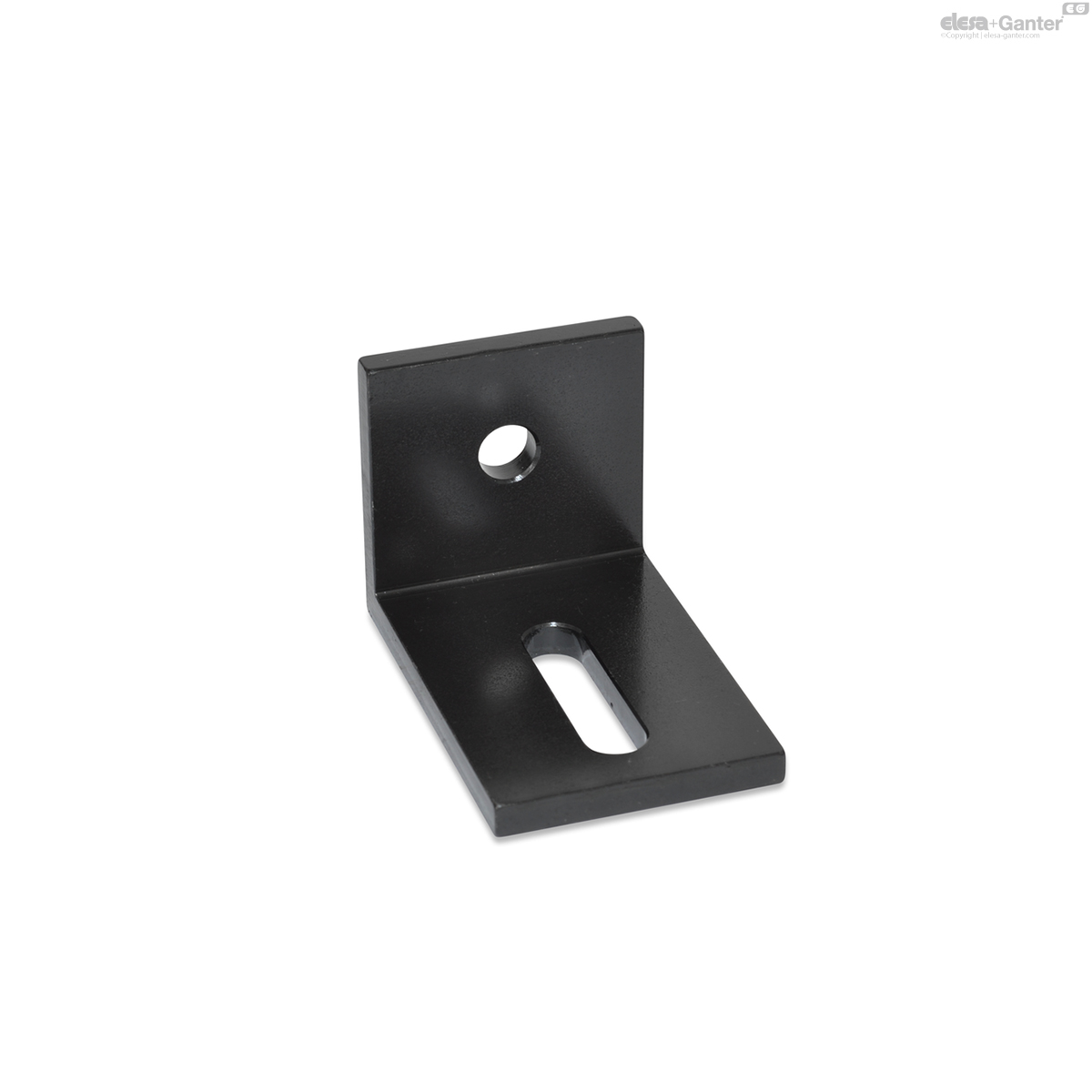

Version with unequal sides
Types
- Type A: without bores
- Type C: with bores and slotted holes
Structural Steel STB
drawn, with sharp edges
blackened
Aluminium ALM
pressed
matt, ground
GN 970 installation brackets are used universally for right-angle connecting and fastening of, e.g. base plates or covers.
Type A allows for the use of drilling templates specific to the application as well as fastening by welding.
Type B installation brackets have 2 or 4 holes depending on the length l1.
Type C installation brackets have one or two combinations of a hole and an elongated hole depending on the length l1.
